Multi-function Mill Turn Center
PUMA SMX series
High Performance, Opposed Spindle, Multi-Axis Mill Turn
there is essentially no limit to what you can create. It sports larger chuck sizes than the PUMA MX but the same high performance and outrageous flexibility. It’s a flat-out difference maker.
Video
PUMA SMX5100 series
PUMA SMX5100 series

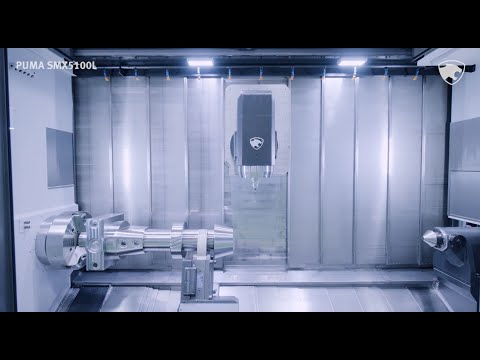

PUMA SMX5100L
PUMA SMX series_3D

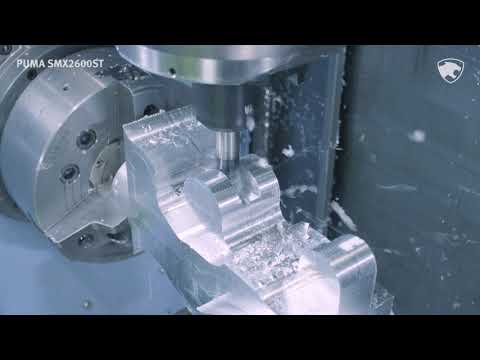

PUMA SMX2600ST_Cutting_Landing Gear Part
PUMA SMX2600S_Customer Story_Barron Engineering

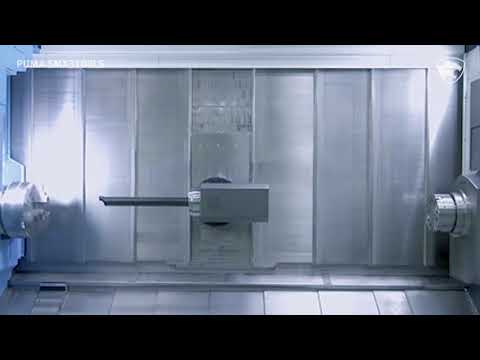

PUMA SMX3100LS_Steady Rest and Long Boring Bar

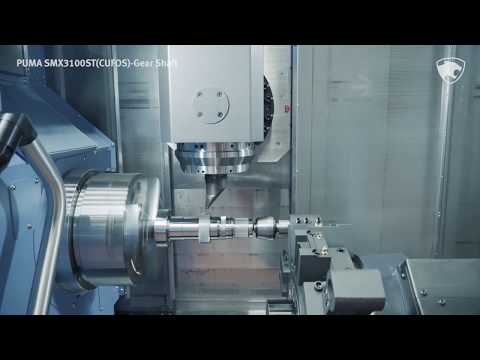

PUMA SMX3100ST (CUFOS)_Cutting_Gear Shaft

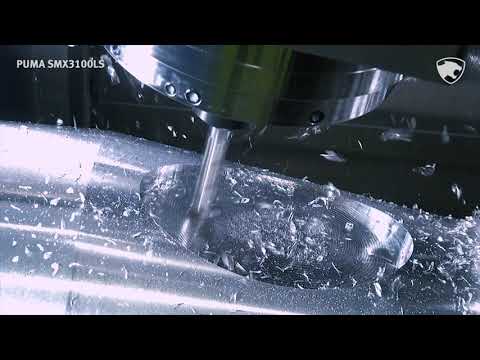

PUMA SMX3100LS_Cutting_Blisk Shaft

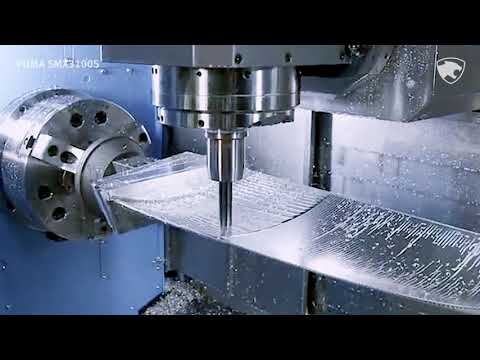

PUMA SMX3100S_Cutting_BLADE
PUMA SMX3100LS_Customer Story_ENGEL KOREA
Highlight
High Precision
Multitasking Capability
Faster Machining
Shorter Setting Time
Powerful multi-tasking capacity for higher productivity
Even higher multi-tasking capability with the combination of the left and right spindles, B-axis milling function, and lower turret ideal for more complex and precision cutting.
Orthogonal structure maximizes machining space.
12 stations high-rigidity servo turret with powerful cutting performance Outstanding control capacity for higher precision.
Outstanding control capacity for higher precision
0.0001-degree precision control function of B-axis
and C-axis enables high-precision machining.
Minimized thermal displacement of spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even in long-hour machining work.
Easy and convenient functions
Front located tool magazine and convenient ATC operation panel make it easy to maintain and repair tools.
Side-to-side movable swiveling operation panel with adjustable height.
User friendly work guidance function.
Model Specifications
The suggested is a global standard specification and it may vary by country.
Chuck size
Max. Turning Diameter
Max. Turning Length
Distance between Columns
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Length
Height
Width
Weight
PUMA SMX2600
10 inch
660 mm
1540 mm
4000 r/min
26/22 kW
700 N·m
-
-
-
4900 mm
2750 mm
3011 mm
15800 kg
PUMA SMX2600S
10 inch
660 mm
1540 mm
4000 r/min
26/22 kW
700 N·m
4000 r/min
26/22 kW
700 N·m
4900 mm
2750 mm
3011 mm
16200 kg
PUMA SMX2600ST
10 inch
660 mm
1540 mm
4000 r/min
26/22 kW
700 N·m
4000 r/min
26/22 kW
621 N·m
4900 mm
2820 mm
3021 mm
18000 kg
PUMA SMX3100
12 inch
660 mm
1540 mm
3000 r/min
30/25 kW
1203 N·m
-
-
-
4900 mm
2750 mm
3011 mm
16300 kg
PUMA SMX3100L
12 inch
660 mm
2540 mm
3000 r/min
30/25 W
1203 N·m
-
-
-
6400 mm
2850 mm
3011 mm
18500 kg
PUMA SMX3100S
12 inch
660 mm
1540 mm
3000 r/min
30/25 kW
1203 N·m
4000 r/min
26/22 kW
700 N·m
4900 mm
2850 mm
3011 mm
16700 kg
PUMA SMX3100ST
12 inch
660 mm
1540 mm
3000 r/min
30/25 kW
1203 N·m
4000 r/min
26/22 kW
621 N·m
4900 mm
2820 mm
3021 mm
18500 kg
PUMA SMX3100LS
12 inch
660 mm
2540 mm
3000 r/min
30/25 kW
1203 N·m
4000 r/min
26/22 kW
700 N·m
6400 mm
2850 mm
3011 mm
20500 kg
PUMA SMX5100L
15 inch
830 mm
3050 mm
2400 r/min
37/30 kW
1643 N∙m
9222 mm
3346 mm
3597 mm
31000 kg
PUMA SMX5100LB
21 inch
830 mm
3050 mm
1500 r/min
37/30 kW
4200 N∙m
9222 mm
3346 mm
3597 mm
33000 kg
PUMA SMX5100LS
15 inch
830 mm
3050 mm
2400 r/min
37/30 kW
1643 N∙m
2400 r/min
37/30 kW
1643 N∙m
9522 mm
3346 mm
3597 mm
32200 kg
PUMA SMX5100LSB
21 inch
830 mm
3050 mm
1500 r/min
37/30 kW
4200 N∙m
1500 r/min
37/30 kW
4200 N∙m
9522 mm
3346 mm
3597 mm
35900 kg
PUMA SMX5100XL
15 inch
830 mm
4070 mm
2400 r/min
37/30 kW
1643 N·m
10749 mm
3398 mm
3597 mm
37000 kg
PUMA SMX5100XLB
21 inch
830 mm
4070 mm
1500 r/min
37/30 kW
4200 N·m
10749 mm
3398 mm
3597 mm
39000 kg
